5 Step Fan Regulator Types Compared: Modular, Curve, and Open Body — Which One Does Your Project Need?

Five-step fan regulators are everywhere in Indian homes, offices, and industrial spaces. But walk into any electrical goods counter and you will quickly realize that "5 step fan regulator" is not a single product. It is a category with several distinct types, and picking the wrong one means the unit either does not fit your panel, does not match your board, or creates a visual mismatch that clients and contractors both notice. This guide covers all three main types side by side so you can make the right call the first time.

Why the Type of Fan Regulator Matters More Than You Think

Most buyers focus on price and brand when sourcing fan regulators. Type, however, is the factor that determines whether the product works in your specific installation. A unit that is functionally excellent but physically incompatible with your switchboard is useless on site.

The three main types in the 5 step category are:

1. Flat-face 2 modular (standard modular panels)
2. Curve-face 2 modular (curved modular panels)
3. Open body (traditional and industrial wiring boards)

Each type uses the same core capacitor-based speed control mechanism internally. The five speed steps work the same way across all three. What differs is the physical form factor, the mounting method, and the panel compatibility.

Type 1 — Flat-Face 2 Modular Fan Regulators

The flat-face 2 modular is the most commonly sourced type in urban residential and commercial construction across India. It is designed for standard modular switchboards, the grid-frame systems from brands that use flat-profile switch inserts.

The unit occupies two module slots and presents a flat face plate that sits flush with the panel surround. The control knob or slider is centrally positioned and accessible from the front without any protrusion beyond the panel face.

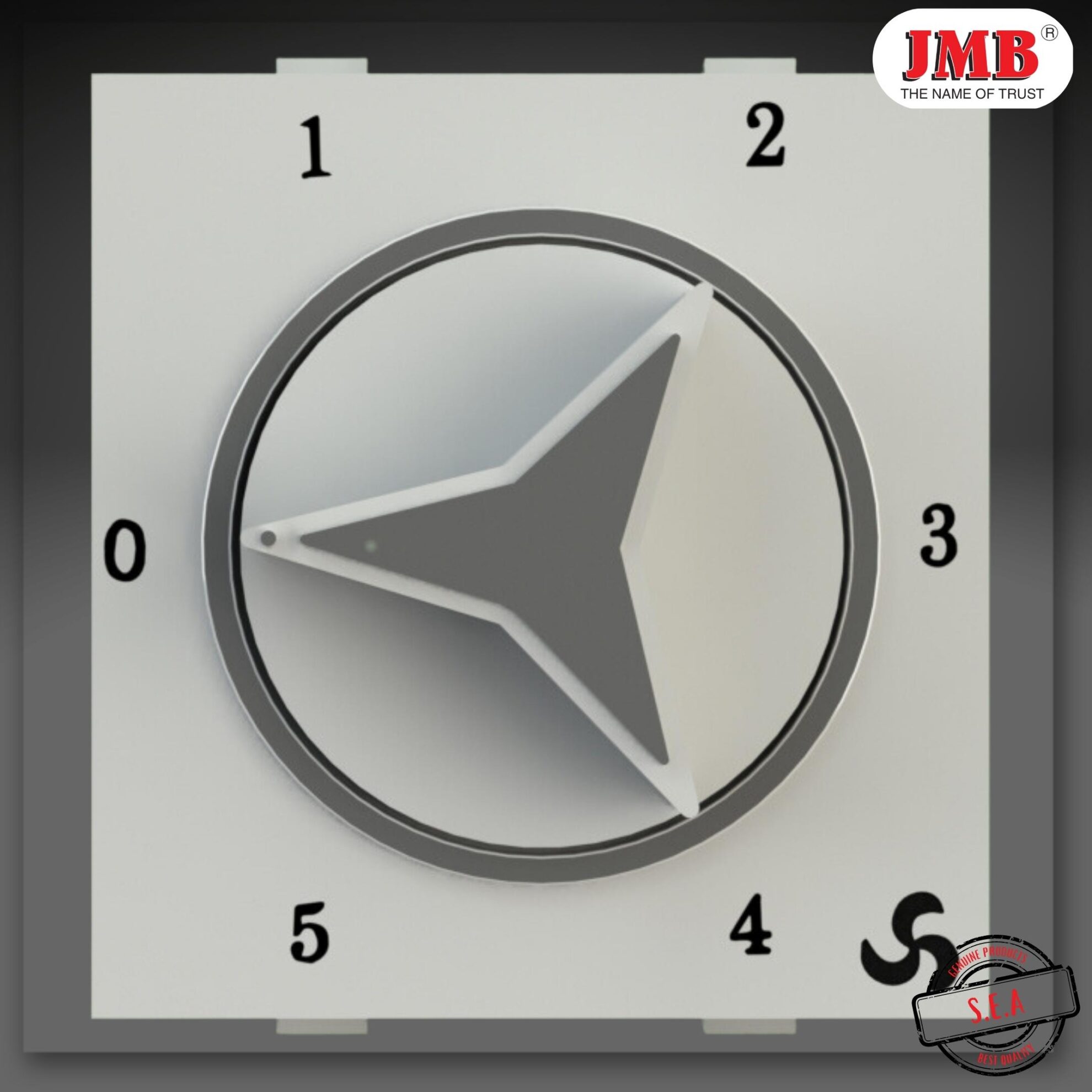

In terms of specific models, the TRINGO 2M 5 Step Fan Regulator and Star 2M 5 Step Fan Regulator are the primary options in this format. Both use capacitor-based five-step control and are suited to residential, commercial, and light industrial panel setups where a flat-face modular panel is in use.

Best for: New residential construction, commercial fit-outs, and any project using standard flat-profile modular switchboards.

Type 2 — Curve-Face 2 Modular Fan Regulators

The curve-face 2 modular type is physically similar to the flat variant in size and wiring, but the face plate has a contoured profile that matches curved-frame modular panels. This type is specified when the rest of the panel uses curved switch and socket inserts.

The visual difference between a properly matched curve regulator and a mismatched flat one installed in a curved panel is immediately apparent. The curve variant sits flush and aligned; the flat one gaps and looks out of place.

The 2 M C STAR and 2 M C SILVER are the two primary models in this format. The STAR variant is for STAR-series curved panel systems, and the SILVER variant is for SILVER-series curved panels. Both deliver the same five-step capacitor control internally; the distinction is entirely in the face profile and finish.

Best for: Premium residential builds, hospitality interiors, and commercial projects using curved modular panel systems.

Type 3 — Open Body Fan Regulators

The open body type is for installations where there is no modular panel at all. Traditional wooden boards, Bakelite boards, surface-mounted wiring enclosures, industrial panel boxes, and OEM electrical assemblies all fall into this category.

An open body fan regulator mounts directly onto the board surface using screws. There is no clip-in frame mechanism and no face plate designed to match a panel series. The unit is functional and direct, built for environments where practicality matters more than panel aesthetics.

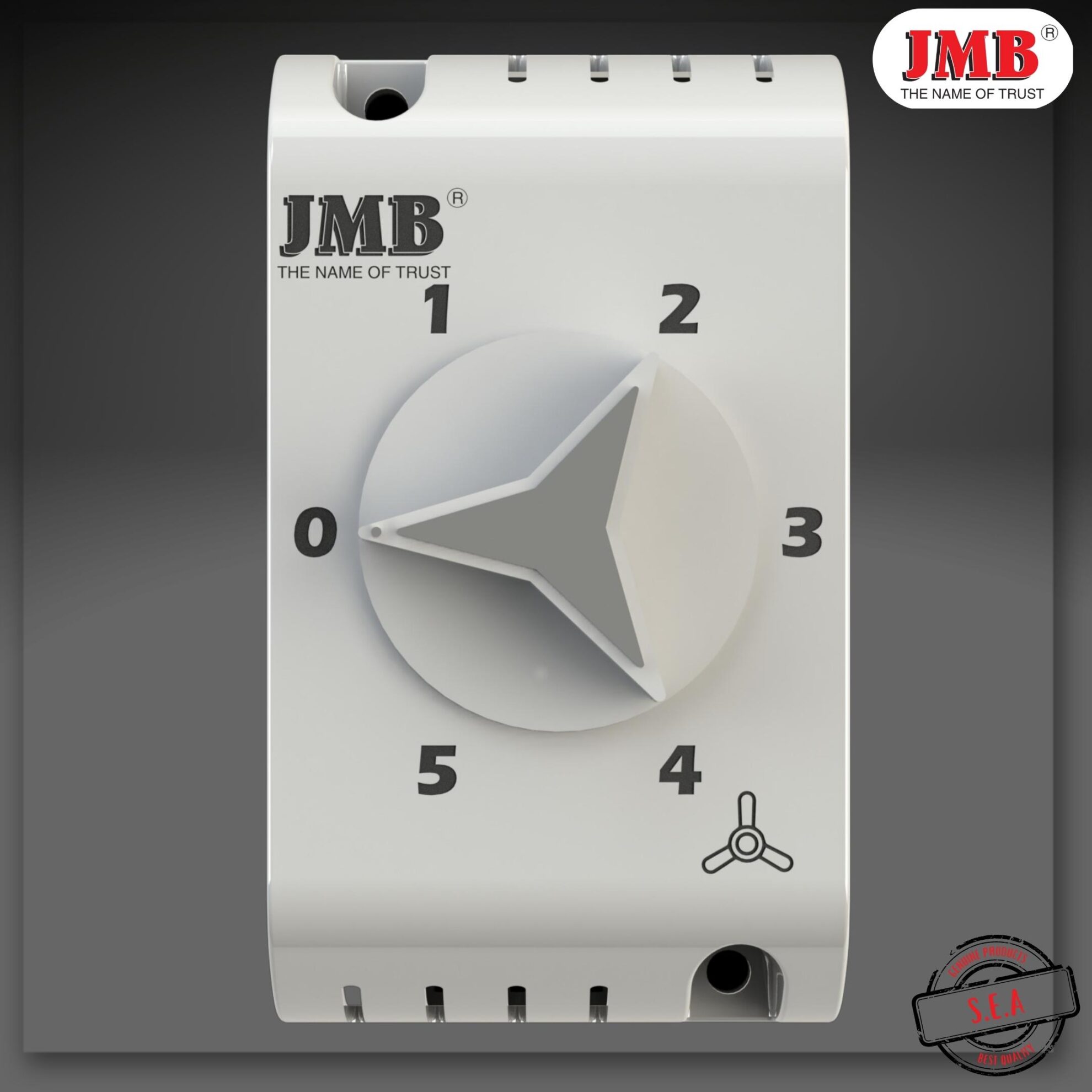

The Open Tringo 5-Step Capacitor Fan Regulator is the primary open-body model in the TRINGO range, while the OPEN STAR 5 ST covers the STAR open-body segment. Both are designed for continuous use in non-modular environments and handle the repeated step-switching of daily fan control without performance degradation.

Best for: Older residential buildings, rural construction, industrial facilities, and OEM panel assembly operations.

Side-by-Side Comparison

Feature	Flat-Face 2M	Curve-Face 2M	Open Body
Panel type	Flat modular	Curved modular	No panel / open board
Module slots	2	2	N/A (screw mount)
Speed steps	5	5	5
Control type	Capacitor	Capacitor	Capacitor
Typical use	Urban residential, commercial	Premium residential, hospitality	Rural, industrial, OEM
Face plate	Flat, panel-matched	Curved, panel-matched	None
Installation	Click-in + screw	Click-in + screw	Surface screw mount

How to Confirm Which Type You Need

Four questions will confirm the right type for any project.

1. Does the installation use a modular switchboard? If yes, proceed to question 2. If no, the open body type is the correct choice.
2. Is the modular panel flat-face or curve-face? Look at an existing switch insert in the panel. If the face plate is flat, go with a flat 2M regulator. If it has a curved or contoured profile, go with a curve 2M variant.
3. Which panel series is in use? For flat modular: choose between TRINGO and STAR series based on what the rest of the panel uses. For curved modular: choose between STAR and SILVER based on the panel series.
4. What is the fan's rated wattage? Confirm the fan's wattage falls within the regulator's rated load range before finalizing the specification.

Sourcing All Three Types From One Supplier

For projects that span multiple building types or wiring configurations, sourcing all three fan regulator types from the same manufacturer simplifies procurement significantly.

A single supplier means consistent documentation, unified warranty terms, and dimensional compatibility across the range. You also reduce the administrative overhead of managing multiple vendor relationships for what is ultimately one product category.

The complete range of flat modular, curve modular, and open body 5 step units, along with their individual specifications, is available from the 5 Step Fan Regulator manufacturer. For a broader view of different regulator categories, the fan regulator manufacturers in India website showcases the complete lineup.

What to Check When Evaluating Manufacturer Quality

For B2B and bulk buyers, the product type is just the starting point. Here is what to look for when evaluating a manufacturer rather than just a product.

Production consistency: Ask whether dimensional specifications are held to a published tolerance across production batches. For modular units especially, variation in depth or mounting hole position causes fitment issues at scale.

Capacitor quality: The internal capacitor is the component most likely to determine the product's field life. Ask about the capacitor specifications and the source. A manufacturer who cannot answer this question is likely using the cheapest available component.

Compliance documentation: For commercial projects and government contracts, BIS certification and test reports are often required. Confirm availability before finalizing the supply agreement.

Sample policy: A manufacturer confident in their product will provide samples before a bulk order. If samples are not available or are heavily restricted, that is worth noting.

After-sales support: What happens when a batch has a defect? A manufacturer with a clear return and replacement policy is lower risk than one with no published process.

The Wiring Principle Stays the Same Across All Three Types

Regardless of which type you are installing, the core wiring method is consistent. The live supply from the fan switch connects to the regulator's input terminal. The output terminal connects to the fan. Neutral bypasses the regulator and connects to the fan directly.

This means an electrician who has worked with one type can wire another type without retraining. The only procedural differences are in how the unit is physically secured to the board or panel.

For a detailed visual walkthrough covering both modular and open-body wiring scenarios, the how to connect fan regulator step-by-step wiring guide is the most practical reference available. If you are also evaluating smart fan control options alongside traditional manual regulators, the comparison of remote control ceiling fans vs traditional regulators covers the trade-offs in a straightforward way.

Quick Reference by Project Type

Large housing development with modular panels: Flat-face 2M models (2 modular 5 step fan regulator) for standard sections, curve-face 2M models (2 modular curve 5 step fan regulator) for premium sections with curved panels.

Industrial or commercial facility with open wiring boards: Open body models from the open body fan regulator range.

Mixed project with both modular and traditional boards: Source all three types from the same manufacturer to maintain consistency across the project.

OEM panel assembly: Open body units typically for custom panel kits; confirm dimensions before ordering.

Retrofit in older residential building: Open body type if replacing a non-modular installation; 2M modular if the building has already been upgraded to modular panels.

Frequently Asked Questions About 5 Step Fan Regulator Types

Q1. What are the different types of 5 step fan regulators?

The main types of 5 step fan regulators are flat-face 2 modular, curve-face 2 modular, and open body regulators. Each type is designed for different switchboard and installation requirements.

Q2. What is the difference between modular and open body fan regulators?

Modular fan regulators are designed to fit branded switchboard panels, while open body regulators are mounted directly on traditional wiring boards, surface panels, and custom electrical enclosures.

Q3. Which 5 step fan regulator is suitable for a curved modular panel?

A curve-face 2 modular fan regulator is suitable for curved modular panels. It matches the curved profile of the switchboard and provides a clean, flush installation.

Q4. Can one type of fan regulator be used for all switchboards?

No. Each regulator type is designed for specific panel compatibility. Using the wrong type can create fitting issues, gaps, and an uneven switchboard appearance.

Q5. Are all 5 step fan regulators based on capacitor technology?

Yes, most modern 5 step fan regulators use capacitor-based speed control technology. This provides smoother speed adjustment and better heat management compared to older resistance regulators.

Q6. Which fan regulator is best for industrial and OEM applications?

Open body fan regulators are generally preferred for industrial facilities, OEM panel assembly, and non-modular wiring applications because they support direct mounting and custom installations.

Q7. How do I choose the right 5 step fan regulator for my project?

Check your panel type, installation method, fan load requirement, and design preference. For bulk projects, consulting a manufacturer helps ensure the correct specification.
